🧹 codemap

A code janitor for AI coding agents. Point it at any repo and it draws an interactive architecture map, scores every module 0–100 for technical debt, and helps you pay down the cruft — incrementally, one commit at a time.

Every codebase accumulates cruft over time — monkeypatches, silent fallbacks, dead "legacy" paths, half-finished stubs, copy-pasted duplication, god-files, and valueless glue. codemap surfaces that rot, ranks it, and hands an AI agent a clear punch-list to fix it — with a regression-gated fix loop so the cleanup never breaks your build.

---

Install

codemap is one self-contained folder. Clone it once to a global path, then wire it into whichever agent you use — the engine (Python scripts + the SKILL.md / AGENTS.md / reference/STANDARDS.md workflow) is identical for all of them.

Note: the clone location below (the tool) is separate from the per-project <project>/.codemap/ folder, which is where codemap writes its output for each repo you run it on.

Claude Code — skills live under ~/.claude/skills/, so clone it straight there:

git clone https://github.com/Asixa/codemap-skill ~/.claude/skills/codemap

Restart Claude Code; it shows up as /codemap.

OpenAI Codex — Codex auto-reads AGENTS.md. Clone the repo, then add one line to your project's AGENTS.md (or ~/.codex/AGENTS.md):

git clone https://github.com/Asixa/codemap-skill ~/codemap-skill

For architecture maps / code audits, use the codemap tool at ~/codemap-skill — follow its AGENTS.md.

Cursor — clone it, then add a project rule at .cursor/rules/codemap.mdc:

git clone https://github.com/Asixa/codemap-skill ~/codemap-skill

Use the codemap tool at ~/codemap-skill for architecture maps / code audits — follow its AGENTS.md.

Any other agent (Windsurf, Aider, Cline, …) or by hand — clone it anywhere and tell the agent: "Use the codemap tool at ~/codemap-skill; follow its SKILL.md, and score each module with a separate sub-task per reference/STANDARDS.md." The deterministic scripts (scan / query / render / apply_audit) also run standalone with no agent at all.

Windows PowerShell: replace ~ with $env:USERPROFILE (e.g. $env:USERPROFILE\.claude\skills\codemap).

Why codemap

Most "architecture diagram" tools draw files and imports. codemap is different:

• Functional modules, not files. It groups code into the capabilities that actually matter (a store, a handler group, a feature, a plugin) and lays them out along the real data-flow.
• It grades the rot. Every module gets a health score (0–100) and grade (A–F) plus concrete file:line findings, hunting specifically for the smells that make code unmaintainable: monkeypatch, fallback, silent-except, legacy/dead code, stub, fake-output, dual-format, bloat, duplication, glue, god-component, …
• Independent, honest scoring. Each module is audited by a separate AI subagent against a fixed rubric — no single pass rubber-stamping the whole repo.
• Incremental + git-aware. A per-module content hash + the last-run commit mean re-runs only re-audit what changed, and update shows you the commits since last time and which modules they touched.
• Cleanup that can't regress. fix runs a four-role loop — lock a test baseline → fix → an independent acceptance check proves the pre-fix tests still pass → re-score.

It's the maintenance pass you never have time to do, turned into something an agent can run on a schedule.

Screenshots

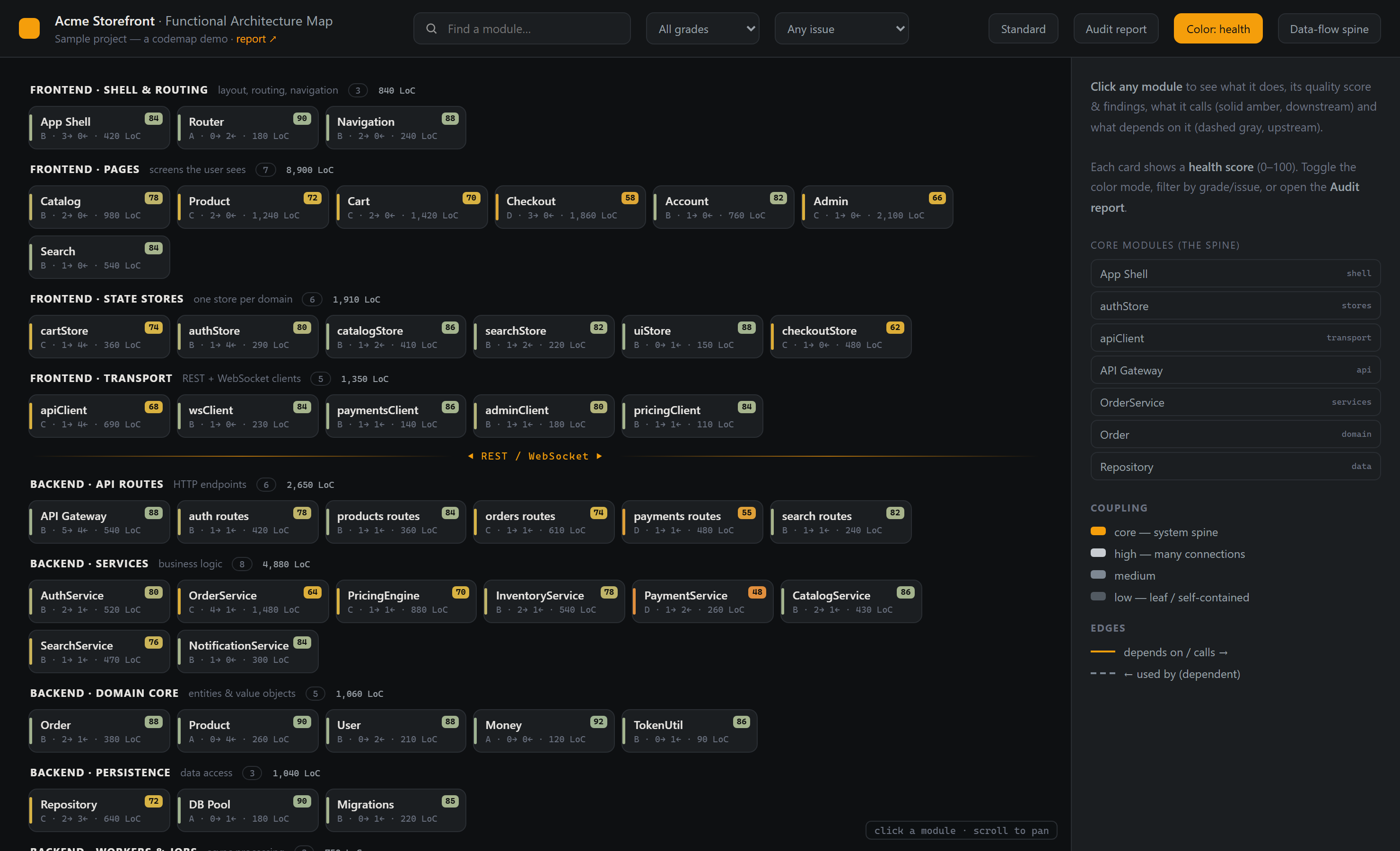

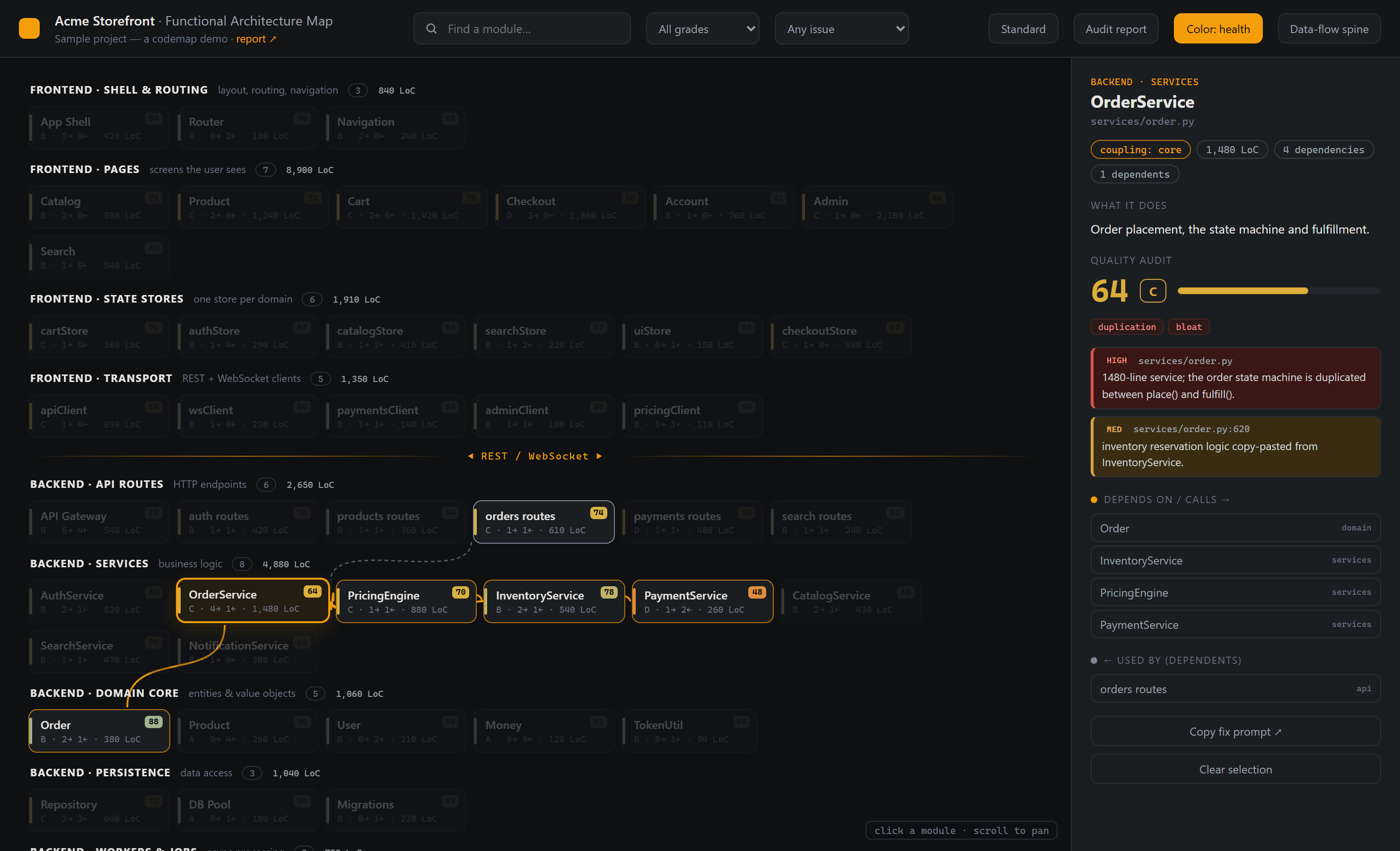

Click any module to highlight what it calls (downstream) and what depends on it (upstream), with its score, smell tags, and file:line findings:

The Audit report — averages, grade spread, worst offenders, smell-tag frequency, and cross-cutting themes:

• Health vs coupling color modes — problems pop amber/red, healthy modules recede to a muted green (colorblind-friendly; the cue is saturation, not just hue).
• Filter by grade (≤ B/C/D/F) or by issue tag; jump straight to the worst offenders.
• Editable Standard page — change descriptions, add your own issue tags to capture your definition of a problem, and Export to standard.json; future audits use it.
• i18n — English or Chinese UI (meta.lang); module names are never translated.
• Copy-fix button on each module — copies /codemap fix <module> to paste into your agent.

Languages

Language-agnostic. LoC and hashing work on any text source and paths are plain globs, so it covers Python, TypeScript/JS, Rust, C#/.NET, C/C++, Go, Java, Swift, and more.

Requirements

• Python 3 — standard library only. No pip install, no external packages.
• An AI coding agent to drive the audit/fix/test steps — Claude Code, Codex, Cursor, or any agent that reads instructions and spawns sub-tasks (see Install).
• A browser to open the generated HTML. That's it.

Usage

Talk to your agent in plain language, or use the subcommands (shown as Claude Code slash commands — say the same verb to any other agent). On the first run, codemap asks your preferences (UI language, output location, project title) and saves them to <project>/.codemap/config.json. Everything it produces lives in <project>/.codemap/.

Command	Does
/codemap init	first build: ask prefs → decompose into modules → scan → audit every module → render
/codemap check	read-only: is the map stale? shows commits since last run + drifted / new / deleted modules
/codemap update	incremental + git-aware: re-audit only changed modules, re-render
/codemap test <module>	generate a regression-net of tests for a module
/codemap fix <module>	regression-gated cleanup: lock baseline → fix → independent acceptance → re-score

How it works

modules.json  ──scan.py──▶  + LoC, content hash & git diff (stale = hash != auditedHash)
     │                       (decomposition + module descriptions: authored by the agent)
     │◀─apply_audit.py──   one INDEPENDENT subagent's score per module (fixed rubric)
     │◀─query.py──────────  token-cheap targeting (by grade / tag / severity / staleness)
     └──render.py────────▶  codemap.html + codemap.md

modules.json is the source of truth (commit it for an audit history); the HTML/MD are pure projections, regenerated by render.py. Four separate subagent roles, never merged: auditor (scores), test-author (writes tests), fixer (changes code), acceptance/verifier (proves no regression). Tests are the regression net and are kept out of a module's own audit scope.

Customizing the standard (define your own code smells)

The scoring standard is data, not code (reference/standard.json: rubric, severities, coupling, and issue tags with descriptions). Open the Standard page in the map → Edit → tweak descriptions, add your own tags, then Export to <project>/.codemap/standard.json. Custom tags flow through the whole map and are used by future audits. The prose version + the exact subagent prompt live in reference/STANDARDS.md.

Repository layout

codemap/
  SKILL.md          # the orchestration the agent reads
  AGENTS.md         # entry point for Codex / other agents
  README.md
  LICENSE           # MIT
  reference/
    STANDARDS.md    # scoring rubric, smell taxonomy, severities, subagent prompts
    DATA_MODEL.md   # modules.json schema
    standard.json   # the machine-readable default standard (overridable per project)
  scripts/          # deterministic, stdlib-only Python
    scan.py         # LoC + content hash + git diff + staleness
    query.py        # filter modules (grade/tag/severity/…) → ids/paths/findings
    apply_audit.py  # merge one subagent's audit into the state
    render.py       # modules.json → HTML + report
  assets/
    template.html   # the interactive map shell (data injected at render time)
  examples/         # the screenshots above

License

MIT © 2026 Xingyu Chen.

---

_{Keywords: code quality · technical debt · refactoring · code janitor · legacy code cleanup · architecture visualization · dependency graph · static analysis · code audit · Claude Code skill · Codex · AI agents · code rot · cruft · code smells.}
